Configure Test API - Low code

Low-code: is the function to configure API, build servers, endpoints, schemas to perform steps in an API Test.

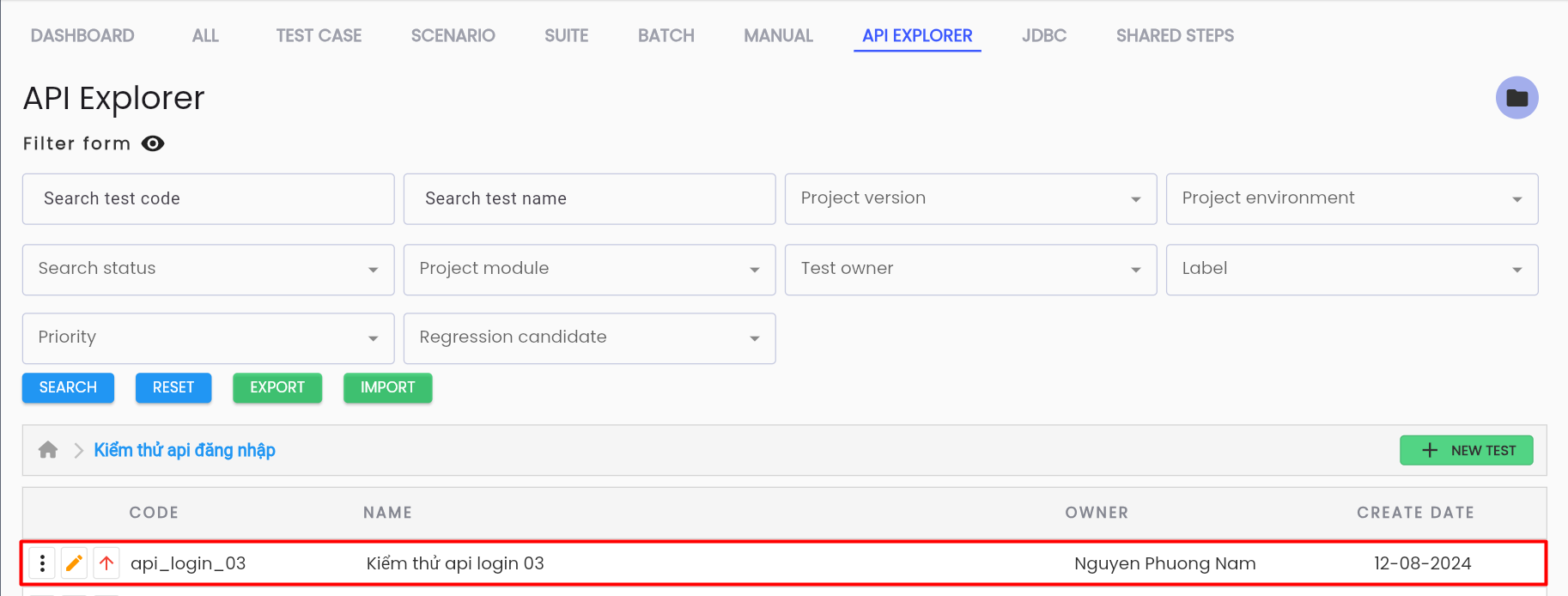

To access the low-code test API screen, users can do it in two ways:

• Method 1: Click on the data line of the corresponding test scenario.



• Method 2:

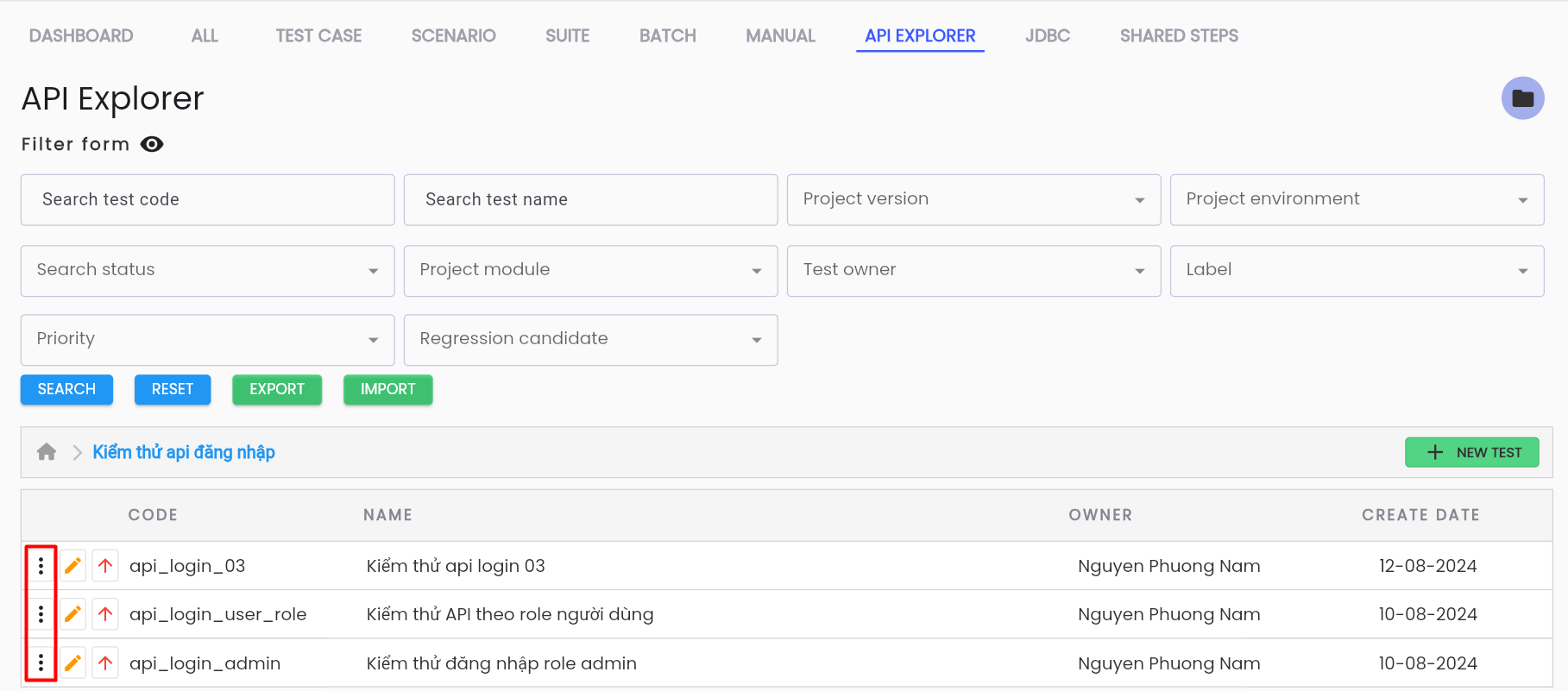

  • Step 1: Click the button “⋮” corresponding to the test scenario you need to access

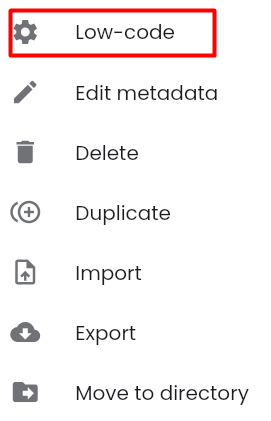

  • Step 2: Select “Low-code” in the function list

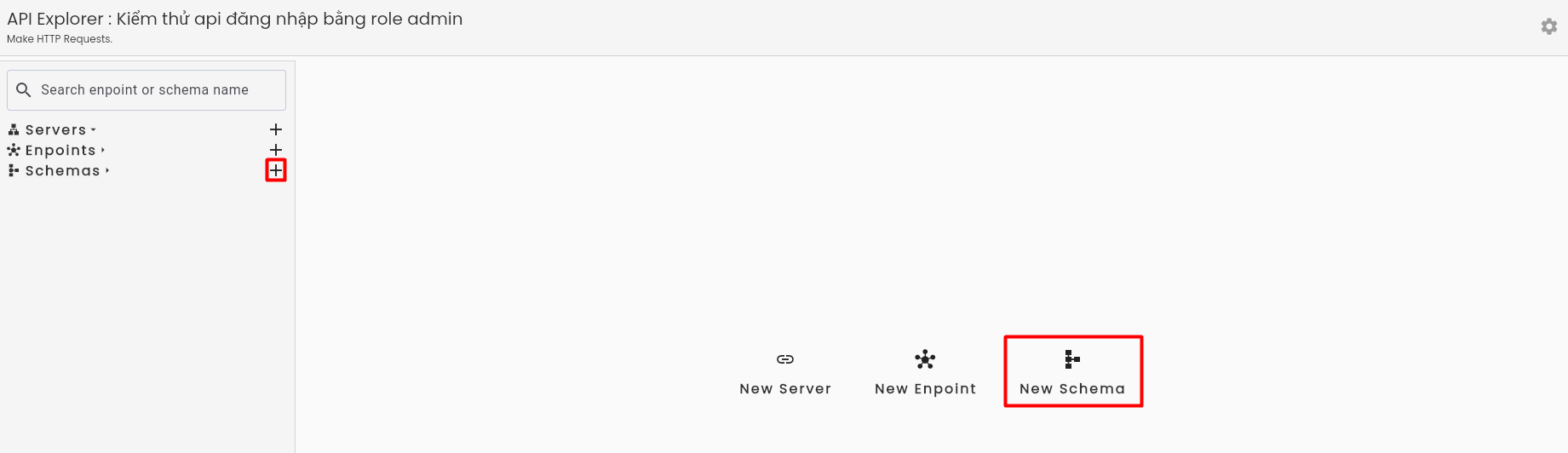

  Low-code screen display system





Functions in low-code screens

Function	Description
	Create a new Server
	Create a new Endpoint

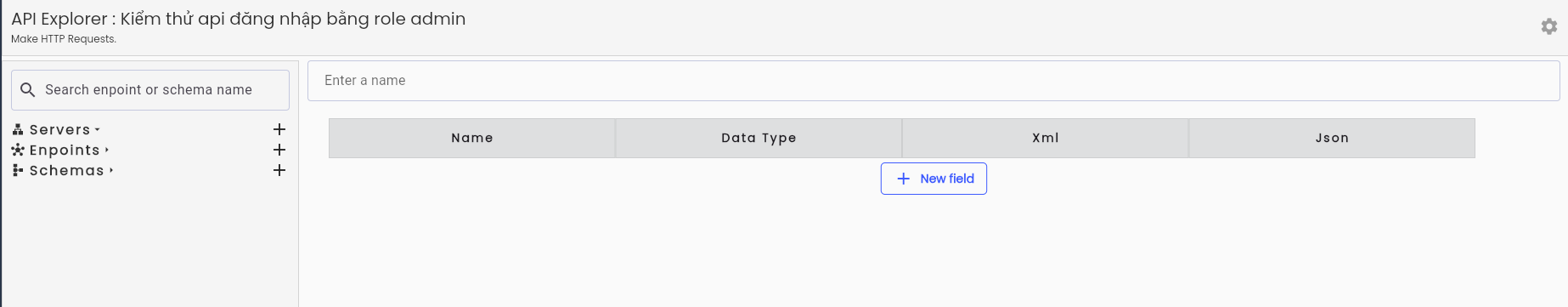

	Create a new Schema

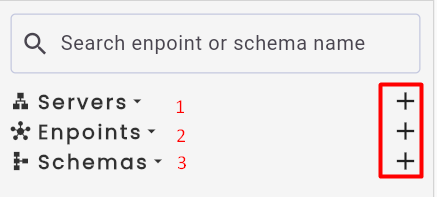

	1. List of servers 2. List of Enpoints 3. List of Schemas Click button to create a new corresponding function
	Search: The function allows users to search for Enpoints or Schemas by name
	Function that allows users to switch to the test api metadata screen from the low-code screen
	Back: Click the “Back” button to return to the scenario library screen

Servers

• Servers are created for statistical purposes, storing servers, strings containing the domain name of the URL that will make API calls.
• At the Low code API Explorer, Servers in Low-code do not have the configuration function for calling requests through but will be declared when making API test calls in test cases, test scenarios or test suites.

Add new servers

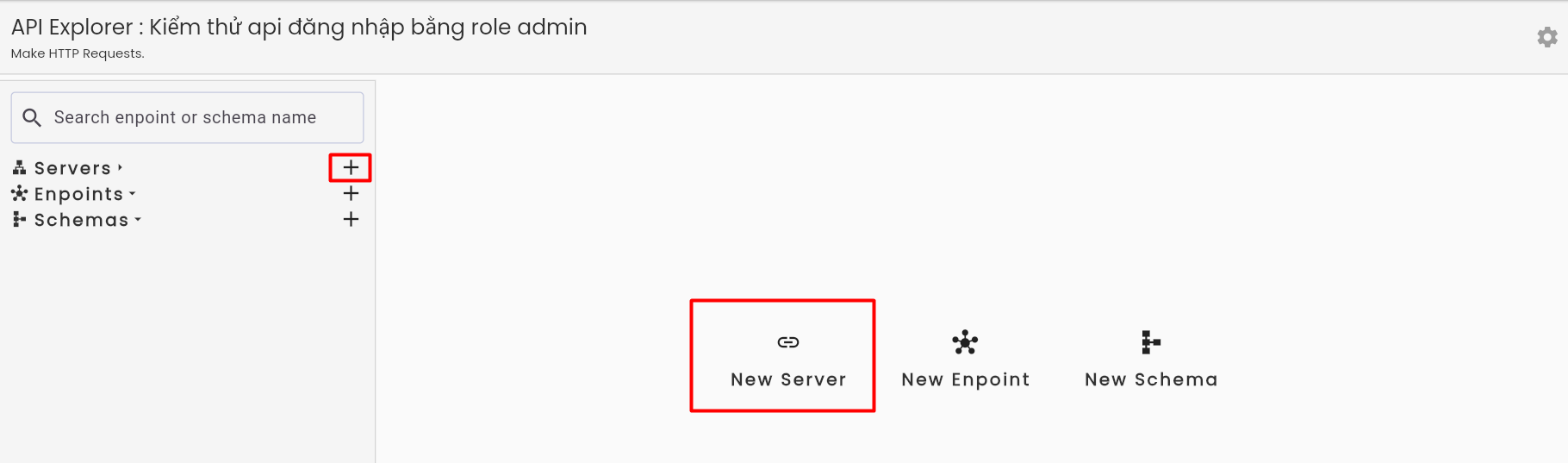

Step 1: In the Low-code screen, click “New server” or button to create a new server

Step 2: The system displays the screen to add a new server, the user enters and clicks “Save”

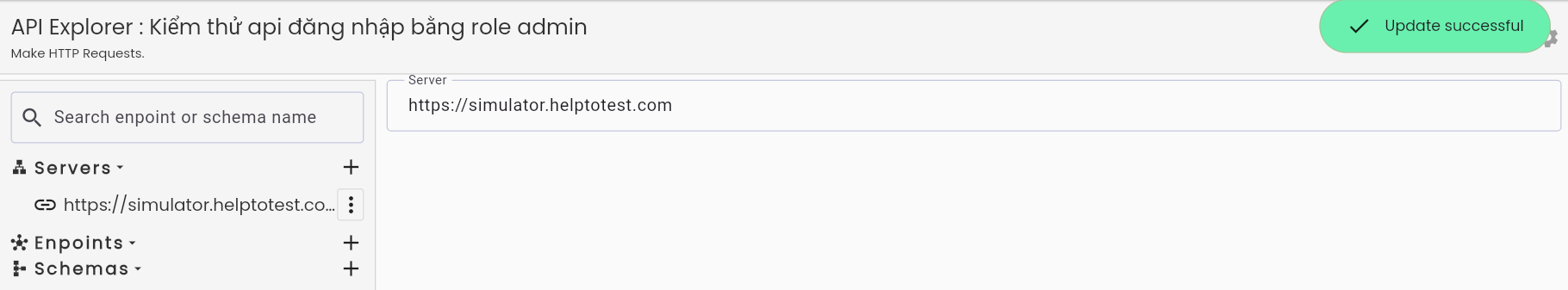

Successfully added, the system notifies "Update successful" and displays the declared server in the list of servers

Edit server

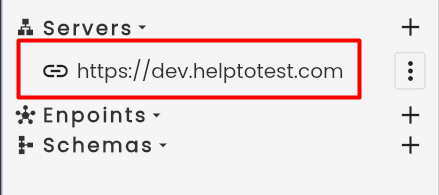

Step 1: At the Low-code screen of the API test, the user selects the server data line he wants to change.

Step 2: Edit the information that needs to be changed and click “Save”

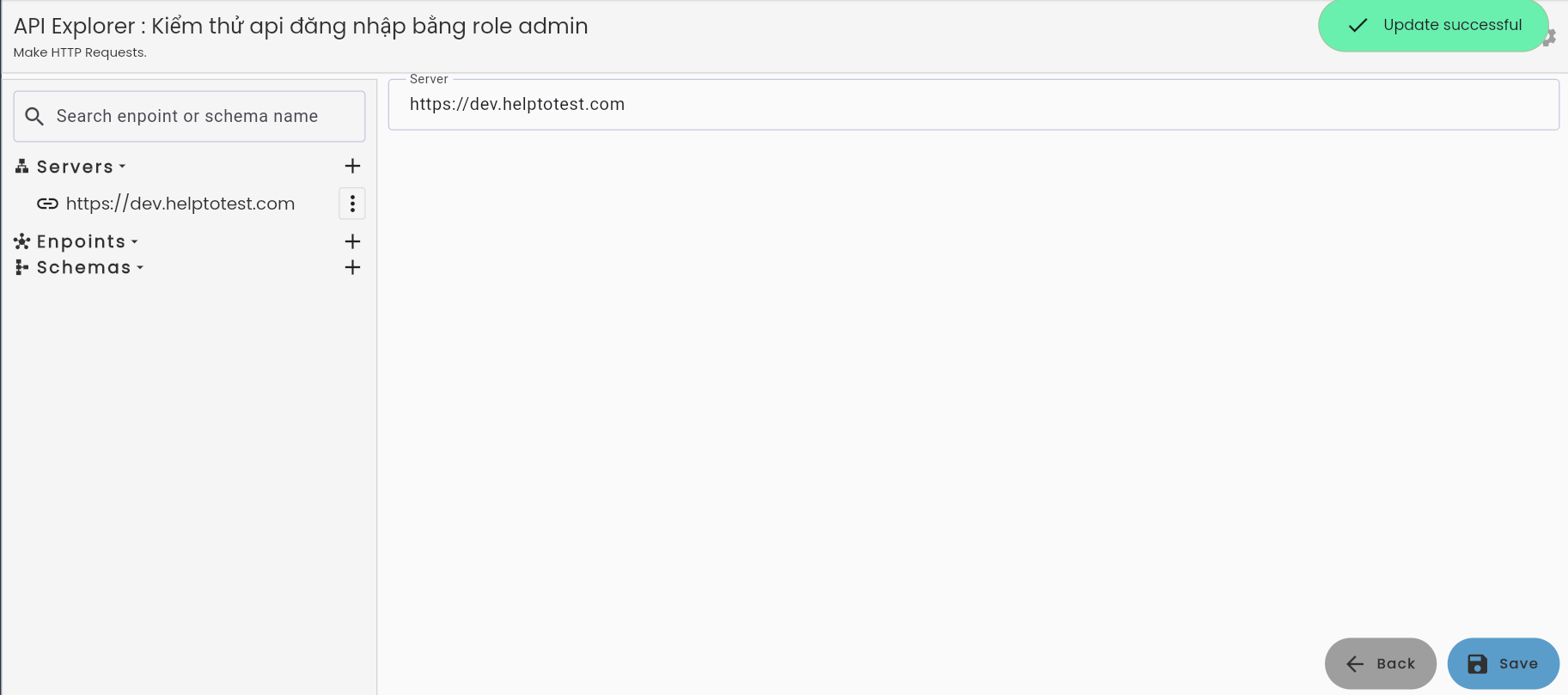

The system displays a notification of successful editing and displays the edited server in the list of servers.

Delete Servers

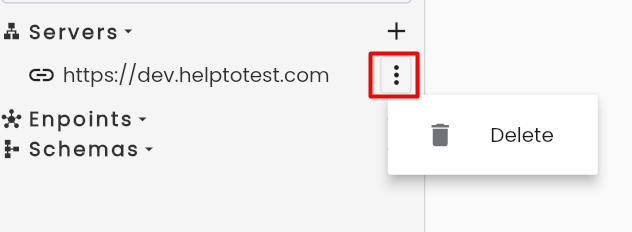

Step 1: At the Low-code screen of the API test, the user clicks the "⋮" button on the server data line they want to delete and selects Delete.

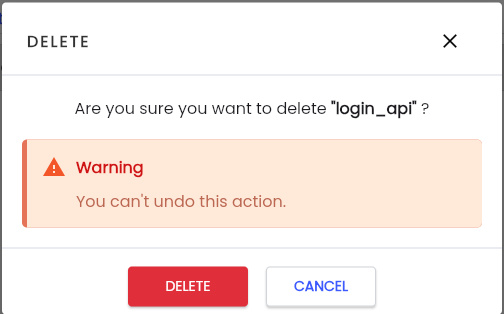

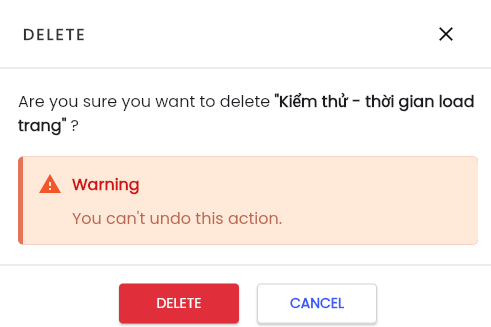

The system displays a deletion confirmation popup

Step 2: Click “Delete” button, notification system Delete successful

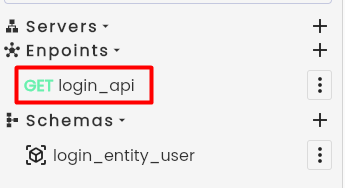

Endpoints

Endpoints are created to configure information related to an API call via HTTP Request

Add new Endpoints

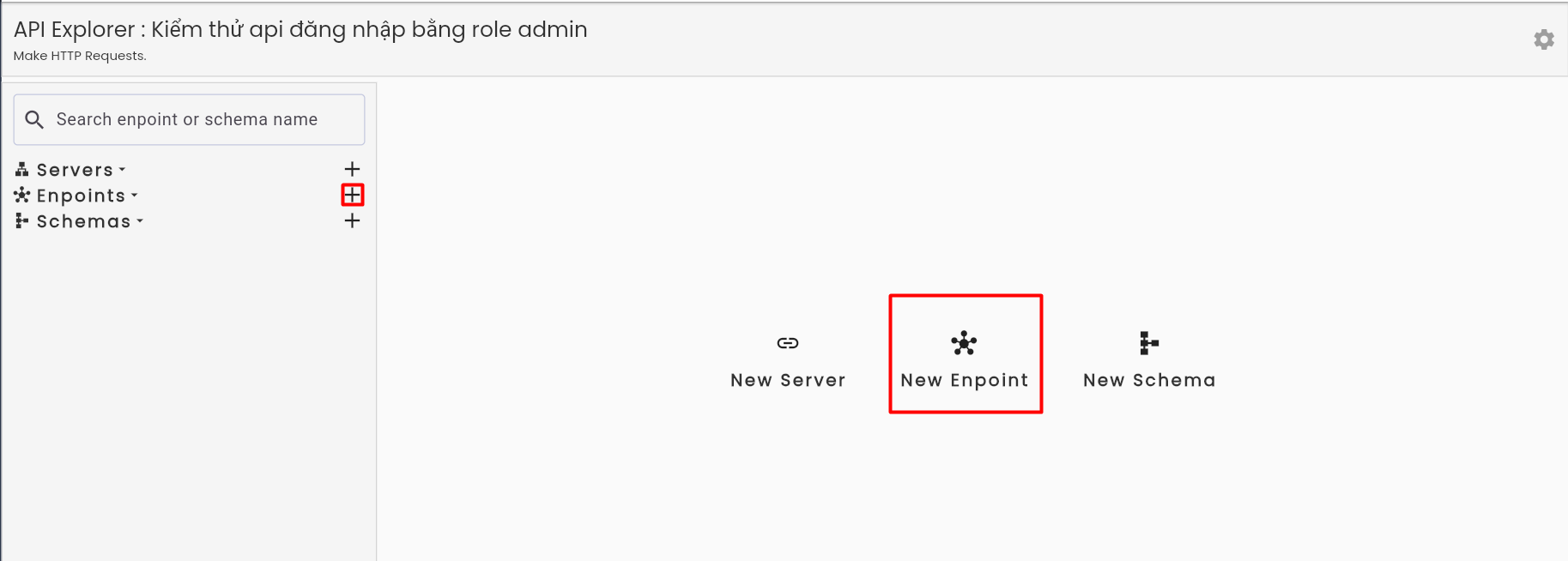

Step 1: In the Low-code screen, click “New Endpoint” or button to create a new endpoint.

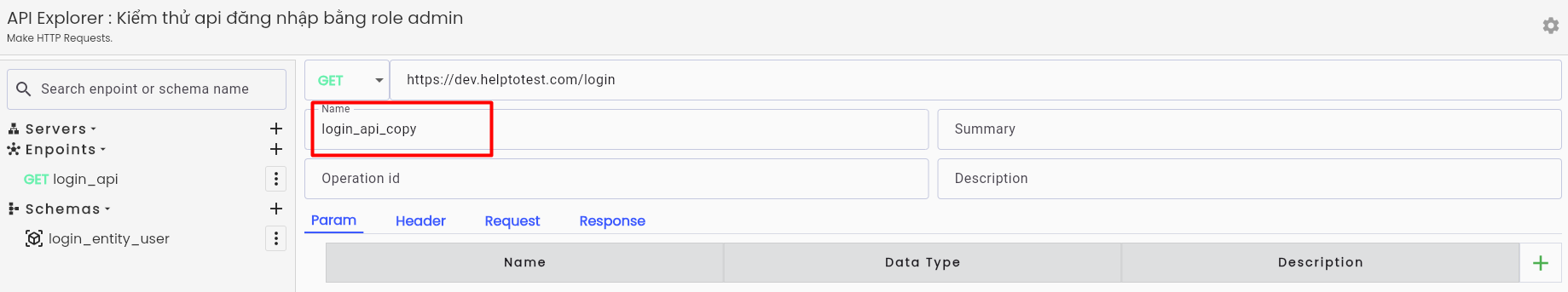

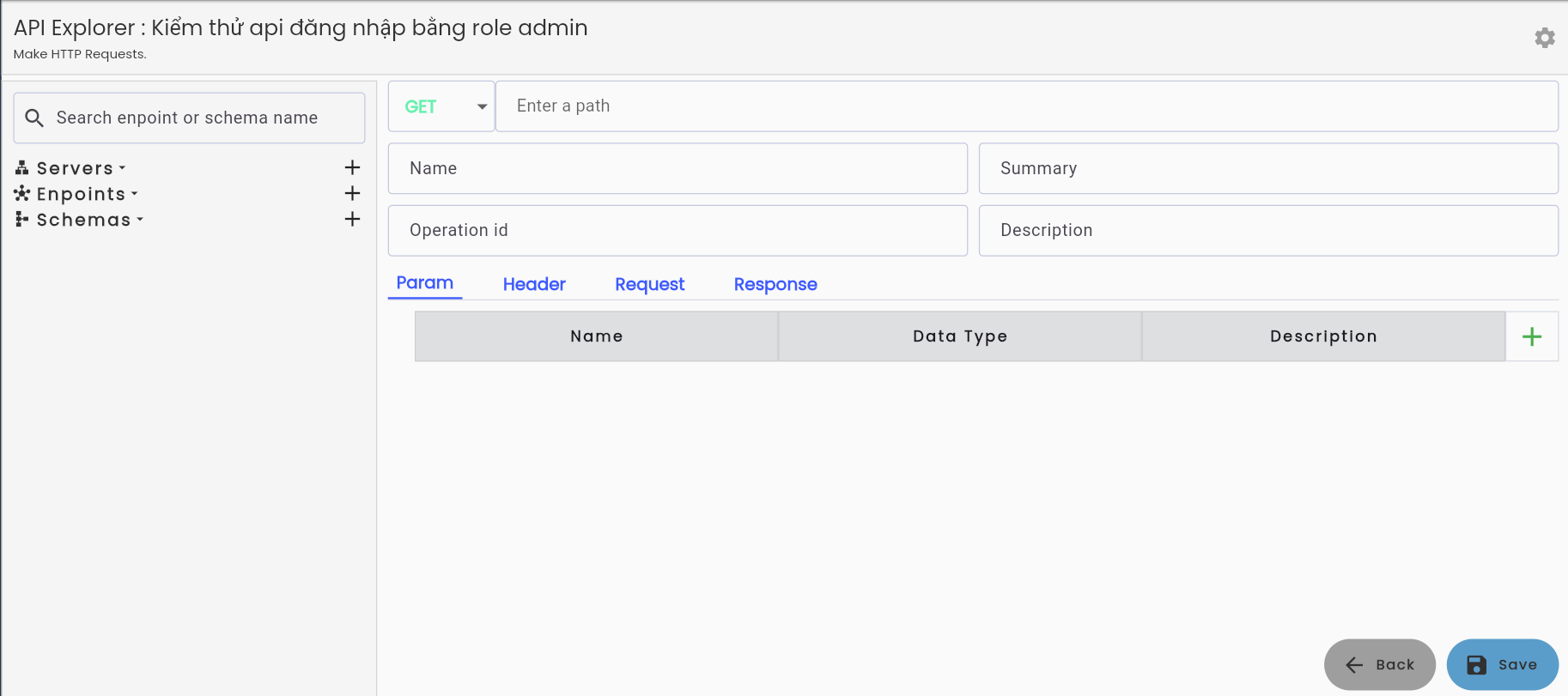

Step 2: The system displays the screen to add a new endpoint, the user proceeds to enter the necessary information

In there:

Field Name	Mandatory	Format	Constraints	Description
HTTP Method	Yes	ComboBox		HTTP methods: are the actions that testers perform when accessing the API: + Get: retrieves data from the server + POST: adds data to an existing file or resource in a server + PUT: replaces an existing file or resource of a server + DELETE: Removes data from the server + Patch: updates requested data fields
Path	Yes	Text		Path to the location where the HTTP method is executed
Name	Yes	Text		Name of the request endpoint
Summary	-	Text		Mnemonic name of the API
Operation id	-	Text		API format
Description	-	Text		Description for the API

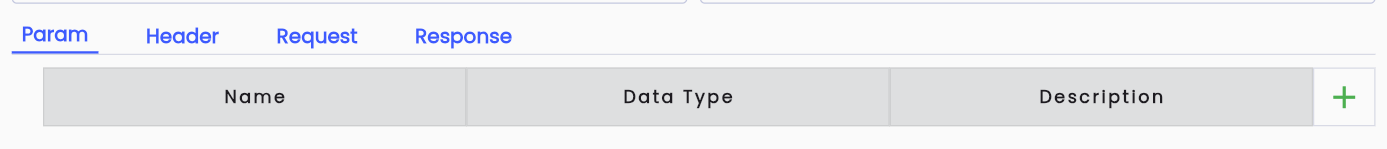

Param

Managing params on the system is used to map with params in API requests at the Header, Request, Response tab

Field Name	Mandatory	Format	Constraints	Description
	-	Button		Click button to create a new parameter
Name	Yes	Text		Parameter name
DataType	Yes	Combobox		Data type of parameter. The default system when creating a new one is "String"
Description	-	Text		Description of the parameter

Header

Allows users to pass Header to the API

Field Name	Mandatory	Format	Constraints	Description
	-	Button		Click the button to create a new header parameter. When clicking the button, Header Property screen to create Value for Header Refers to the item Header
Name	Yes	Text		Header name
Value	Yes	AutoComplete		After "Save" in the Header Property screen, the value/name depending on the type of variable used by the user will be the Value of this header paramater
Description	-	Text		Description of the header

Request

Allows users to pass Requests to the API

Field Name	Mandatory	Format	Constraints	Description
Request	-	Tab		Api request information refers to the item Request API

Response

Allows users to configure response for API

Field Name	Mandatory	Format	Constraints	Description
Response	-	Tab		Api response information refers to the item Response API
	-	Button		Click the button and the system validates the information. If successful, the api is saved and displays the message "Update sucessful", the Endpoints information is displayed on the Endpoints list.
	-	Button		Click the button to cancel the API creating operation the system resets the form and returns to the API library screen

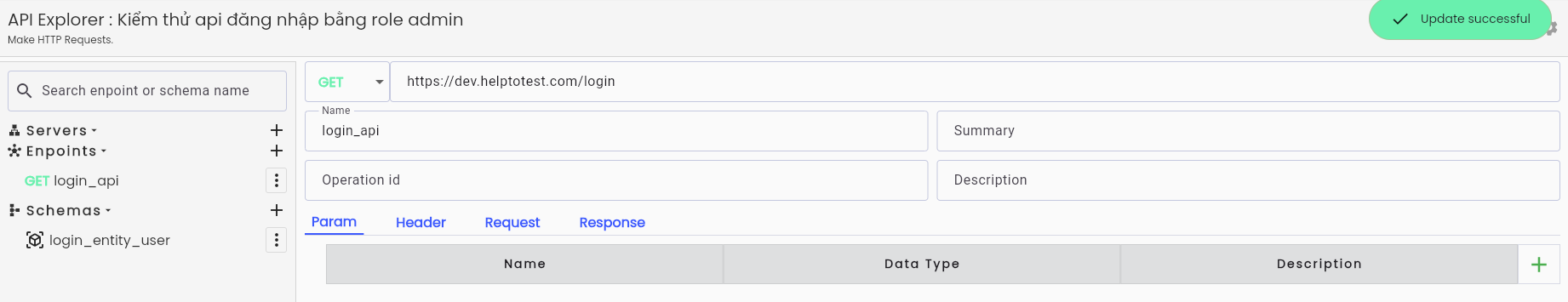

Successfully added, the system notifies "Update successful" and displays the declared server

Header

The API header is like an additional source of information for each API call a tester makes, representing the meta-data associated with the API Request and Response

Headers help users track any potential issues, providing information about:

• Request and Response Body
• Request Authorization
• Response Caching
• Response Cookie

Create Header for API:

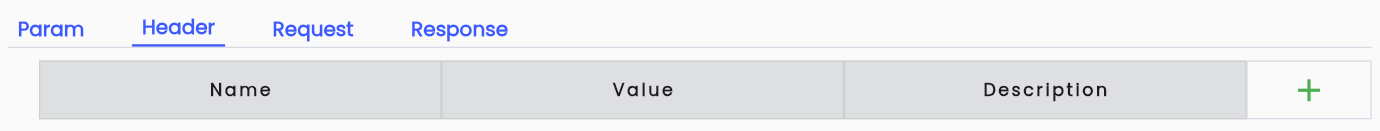

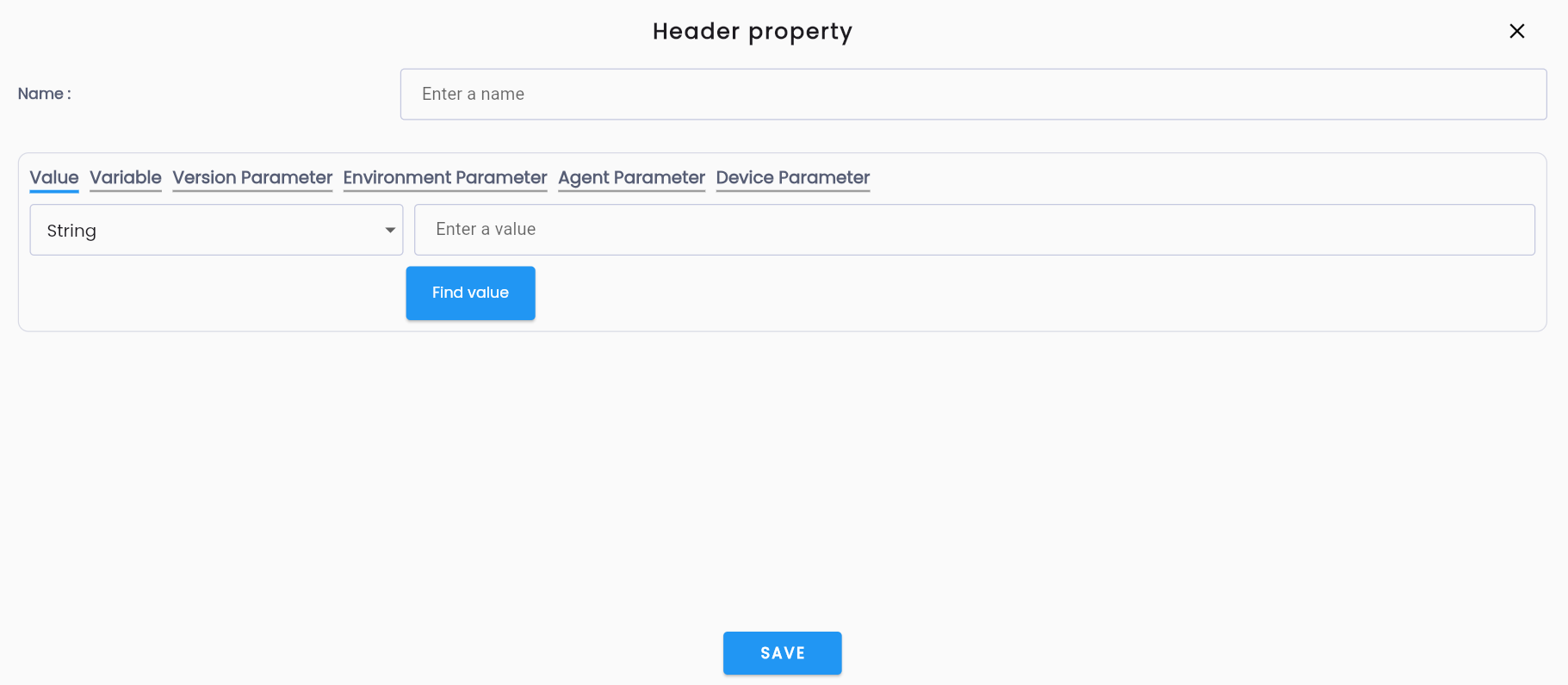

Step 1: On the Header tab, click the “Add” button, the system displays the Header properties screen of the Header

Step 2: Completely and validly enter required information fields, including:

Field Name	Mandatory	Format	Constraints	Description
Name	Yes	Text		Name of Header

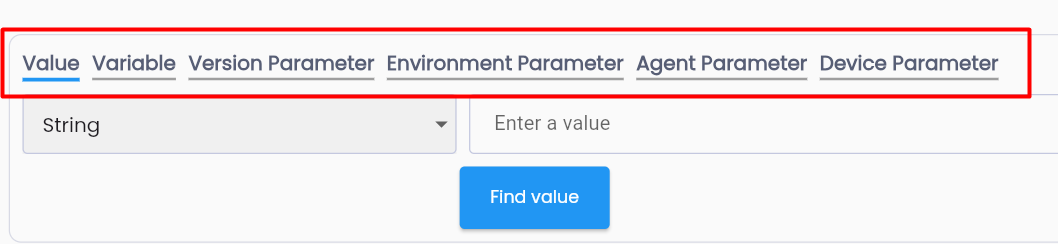

Type	Yes			Value types of the Header parameter. You can choose one of the tabs that suits your intended use
Data type	Yes	Combobox		Data type
Name	Yes	Text	Only displayed when the type is different from "Value". The value must start with a letter, must include numbers and cannot use special characters (except "_")	The name of the parameter declared in the project or the name of the variable (Variable)
Value	Yes	Text	Only displayed when type = “Value”	Enter the value of the Header parameter directly
Find Value	-	Button	Only displayed when type = “Value”	Click Find Value, the system will display a list of previously defined values of the project
Find Variable	-	Button	If Type is Variable	Click on Find Variable, the system will display a list of previously defined project parameters

Step 3: Click “Save” notification system “Update successful”

Request API

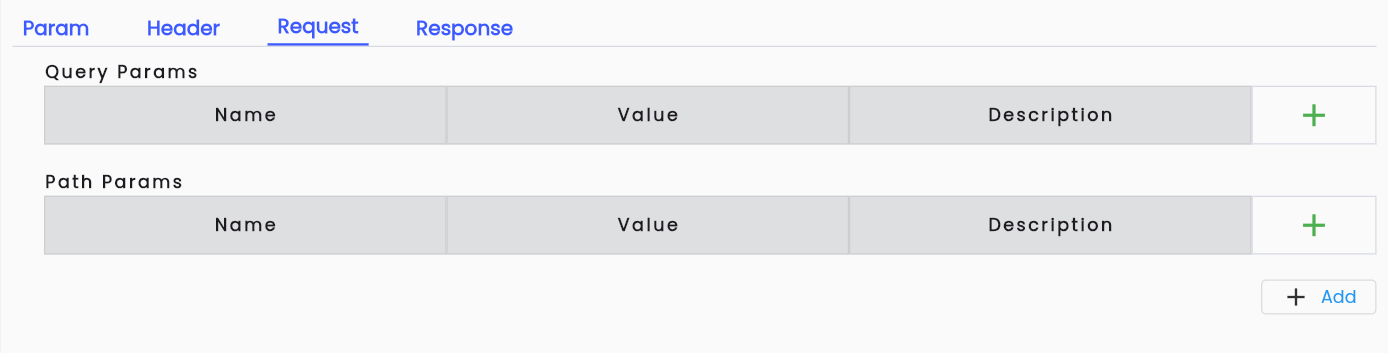

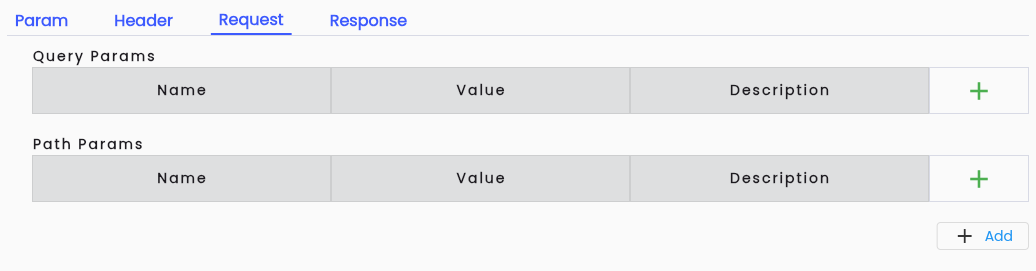

Request API includes all input data to an API on the API's Request tab.

In there:

Note: If the params/variables used in the API are initialized using system params, the system parameters can be initialized in the Param tab of Enpoints and mapped to the params/variables in an API request. If you do not map, the system will automatically create new parameters.

Description of the information field

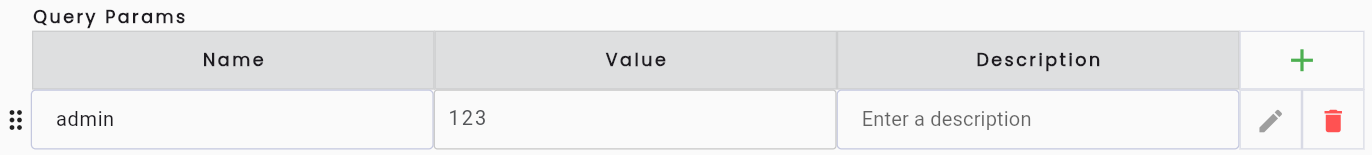

Query Params list

Manage params passed on the URL path according to the "key-value" value corresponding to the "name-value"

Field Name	Mandatory	Format	Constraints	Description
	-	Button		Add 1 new query params. Clicking on the system button will display the “Query Params property” screen.
	-	Button		Click to delete a query params
	-	Button		Click to edit a query params. Edited information is similar to newly added information
	-	Button		Move positions between params (can be of different param types if)
Name	Yes	Text		Name query param
Value	Yes	AutoComplete	If making a new addition, the value is required	The Value value is determined when the user clicks the “Save” button in the “Query Params property” screen after completing the operation of adding or editing the query param. The operation of adding or editing is similar to Header. Reference to section Header

Path params list

Manage path params passed on URL paths by value url/{path-param}

Field Name	Mandatory	Format	Constraints	Description
	-	Button		Add 1 new path params. Clicking on the system button will display the “Path Params property” screen.
	-	Button		Click to delete a path params
	-	Button		Click to edit a path params. Edited information is similar to newly added information
	-	Button		Move positions between params (may be of different types of params)
Name	Yes	Text		Path param name
Value	Yes	AutoComplete	If making a new addition, the value is required	The Value value is determined when the user clicks the “Save” button in the “Path Params property” screen after completing the operation of adding or editing path params. The operation of adding or editing is similar to Header. Reference to section Header

Body list

Includes 5 types of request types:

• None
• Multipart-form
• Application json
• Application xml
• Raw

Field Name	Mandatory	Format	Constraints	Description
	-	Button		Add a new API body request. Click the button and the system will display the “Add a request” screen.
	-	Button		Delete an API body request

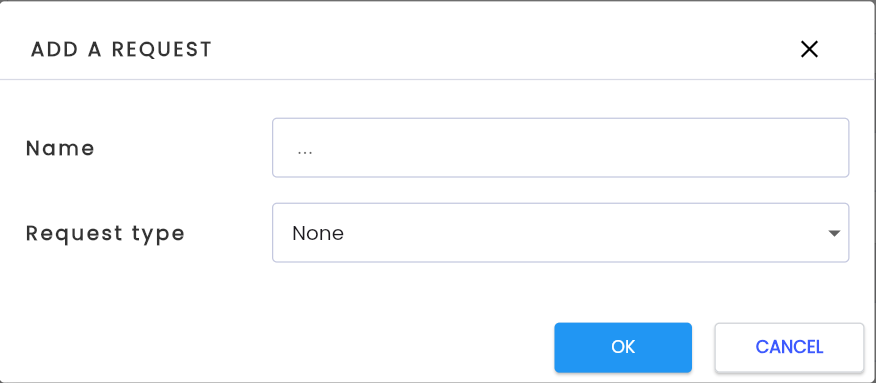

Add a request Click the Add button on the Request tab interface

Field Name	Mandatory	Format	Constraints	Description
Name	Yes	Text		Name of request body
Request Type	Yes	Combobox		Requires users to choose 1 of 5 request Types depending on the intended use. Once added, changes can be made. Note: Each API can create multiple request bodies, but each type can only be created once in an API.

Note: Each API can create multiple request contents, but each type can only be created once in an API

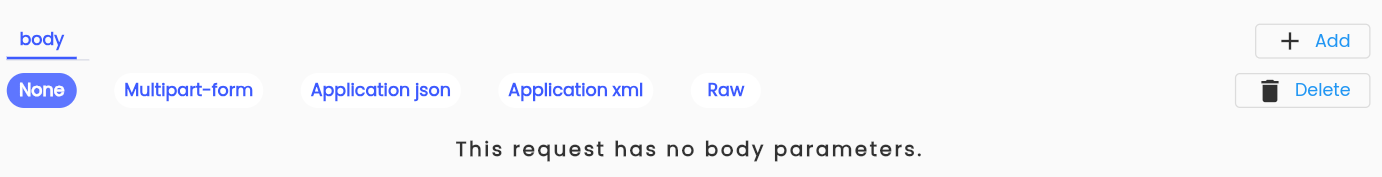

Body request type: None

Request Type None will determine that the API Request does not use body parameters.

Note: If the API does not use a request body, it is not necessary to create a request body with type None.

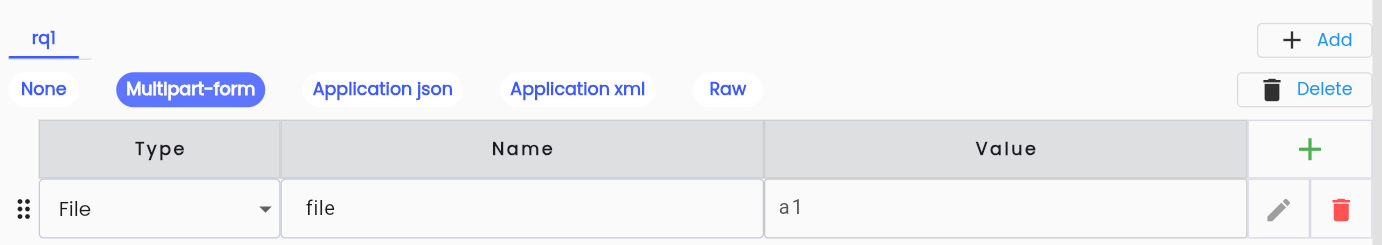

Body request type: Multipart-form

Request Type Multipart-form will determine which API Request to use if the API has a File upload action.

Description of the information field

Field Name	Mandatory	Format	Constraints	Description
	-	Button		Click to add a new params in the multipart-form
	-	Button		Click to delete a new params in the multipart-form
	-	Button		Click to edit a new params in the multipart-form
Type	Yes	AutoComplete		Type of 1 params in multipart-form, representing 1 of 2 values: + Data + File
Name	Yes	Text		Param name
Value	Yes	AutoComplete	If making a new addition, the value is required	The Value is determined when the user clicks the "Save" button in the "Params property" screen after completing the operation of adding or editing params.

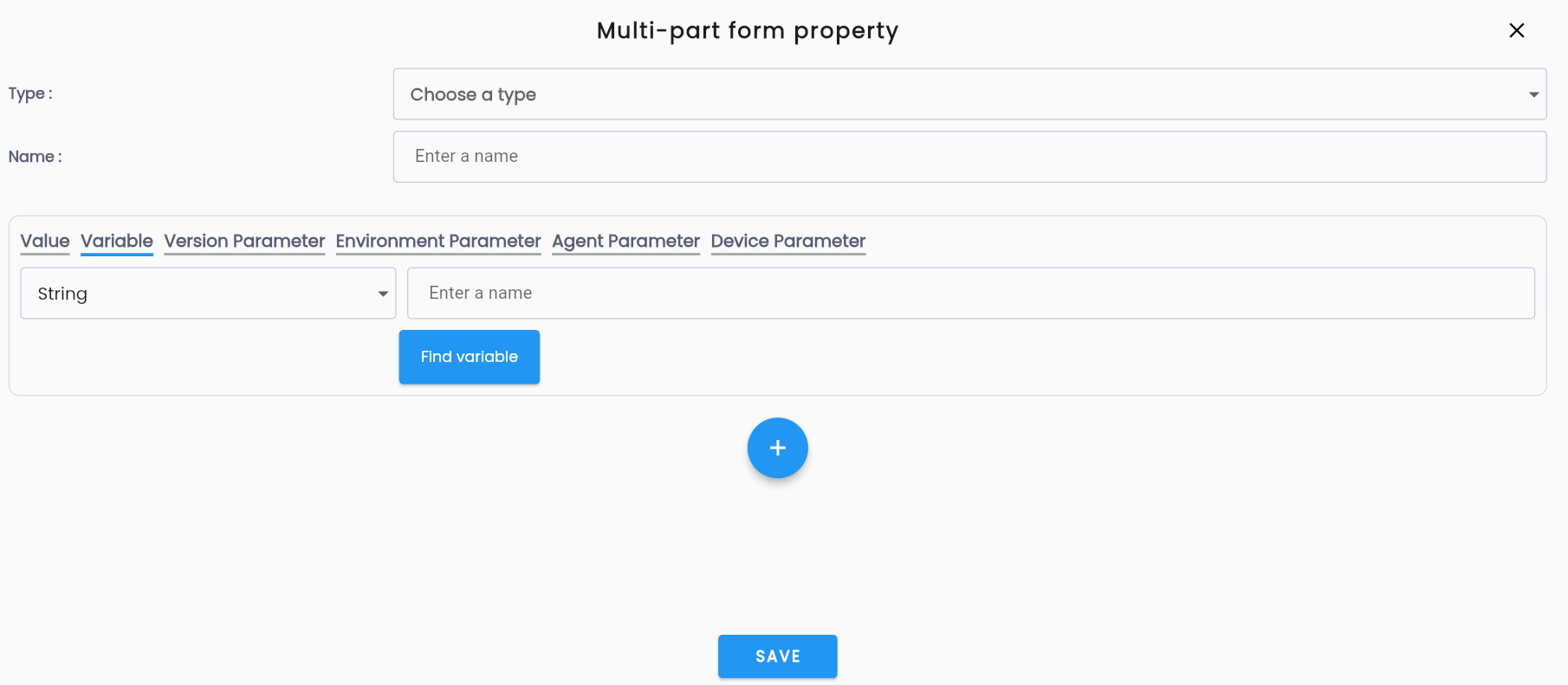

Create Multipart-Form request for API:

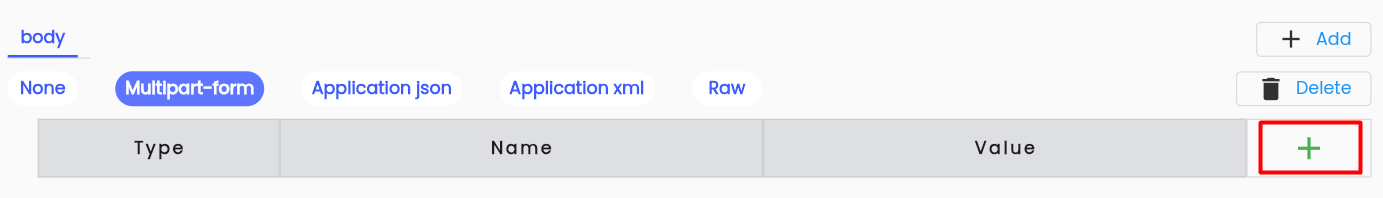

Step 1: On the Multipart-form, click button

Step 2: Completely and validly enter required information fields, including:

Field Name	Mandatory	Format	Constraints	Description
Type	Yes	Combobox		In multi-part form type, the user chooses 1 of 2: + Data + File
Name	Yes	Text		Name of Header
Type	Yes			Value types of the Header parameter. You can choose one of the tabs that suits your intended use
Data type	Yes	Combobox		Data type
Name	Yes	Text	Only displayed when the type is different from "Value". Value must start with a letter, must include numbers and cannot use special characters (except "_")	The name of the parameter declared in the project or the name of the variable (Variable)
Value	Yes	Text	Only displayed when type = “Value”	Enter the value of the Header parameter directly
Find Value	-	Button	Only displayed when type = “Value”	Click Find Value, the system will display a list of previously defined project values
Find Variable	-	Button	If Type is Variable	Click on Find Variable, the system will display a list of previously defined project parameters
Data type	Yes	Combobox		Data type of multipart-form. In addition to the data types for regular data, additional data types for File: + File + Elements + Repository Element + Password + Null + Empty String + RandomValue + Json + Excel Workbook + Excel Sheet + Excel Row + Excel Cell + Match Result + Schema

Step 3: Click “Save”

Step 4: Click “OK”

Body request type: Application json

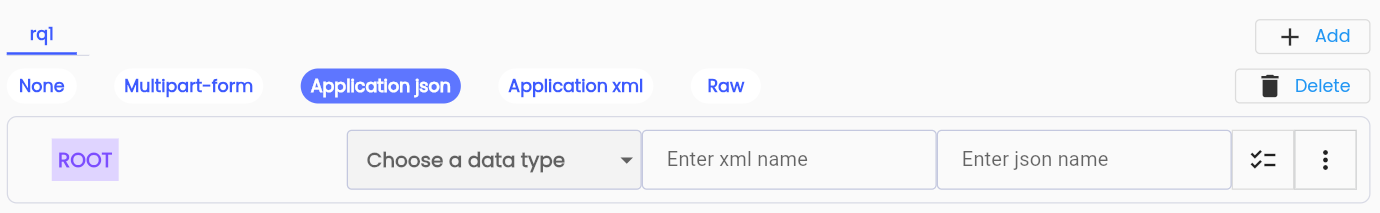

The screen request body type is Application json

Field Name	Mandatory	Format	Constaints	Description
	-	Label		Indicates that the parameter used will be the original parameter of the request
	-	Combobox		Perform data type selection for json params. In addition to the usual primitive data types, you can also choose the following data types: + Object + Schema
	-	Checked Button		If button checked : Determines the data on the parameter in that json becomes a List. For example: If the data type of the variable is “String” it is selected as a list. The Type data entered for this variable must be a List
	-	Text		The name will be used in the request to test the api. If the request is application json, "json name" will be used. If the request is application xml, "Json xml" will be used.
	-	Button		Click on the button and the system displays the screen “XML AND JSON OPTIONS”
	-	Button	Button only appears on parameters with data type “Object”.	Clicking on the image button, the system will create an additional parameter in Object
	-	Button	The original parameter has the data type “Object”.	Click on the image button, the system will create an additional parameter in Object
	-	Button	Button only appears on parameters located in parameters with data type "Object" or parameters with data type "Schema".	Click on the image button, the system displays the “Variable Path” screen
	-	Button	Button only appears on parameters within parameters with data type “Object”
Name	-	Text	The original parameter has data type “Object”	Name of parameter on the system 1 parameter or variable has been declared on the system

Note: The data fields “name” and “jsonName” are different:

• name is the parameter name used in the system to configure the value for the json parameter and will not be used to configure the request body for the API
• jsonName is the name of the parameter in the API request body.

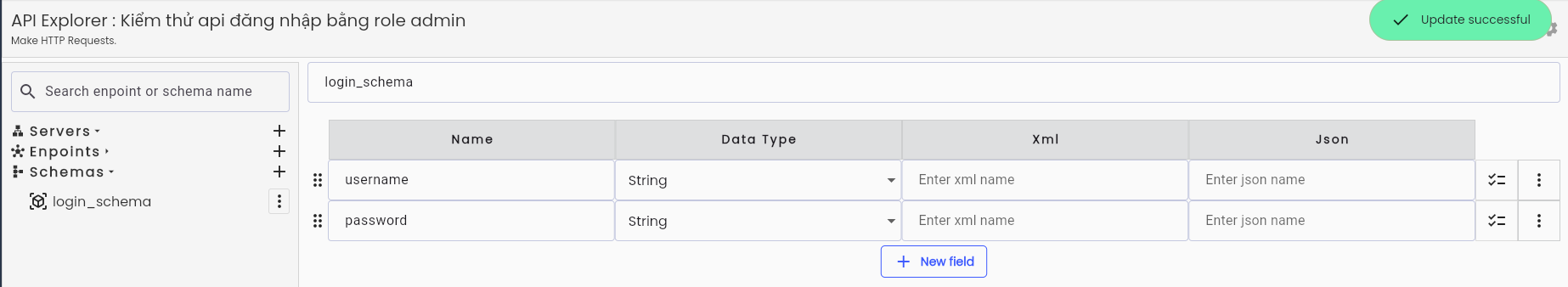

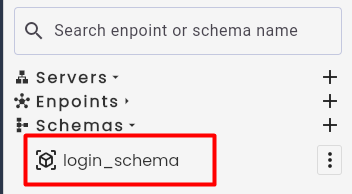

Schema data supports testing APIs with nested Object data types. In such cases, the parent parameter will have the Object data type and the child parameters will have the Schema data type.

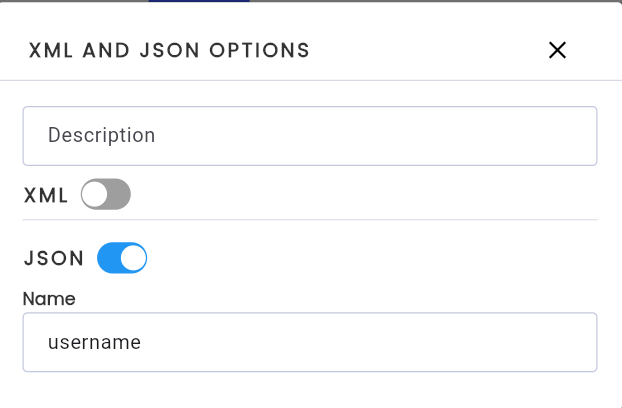

Field Config Function

Press the button then select “Field Config”. The system will display the “XML AND JSON OPTIONS” screen.

In there

Field Name	Mandatory	Format	Constraints	Description
Description	-	Text	-	Description of the json parameter
	-	Switch Button	-	Is a button to control whether the parameter being declared is used in the api request body or not.
Name	-	Text	-	The name will be used in the request to test the api

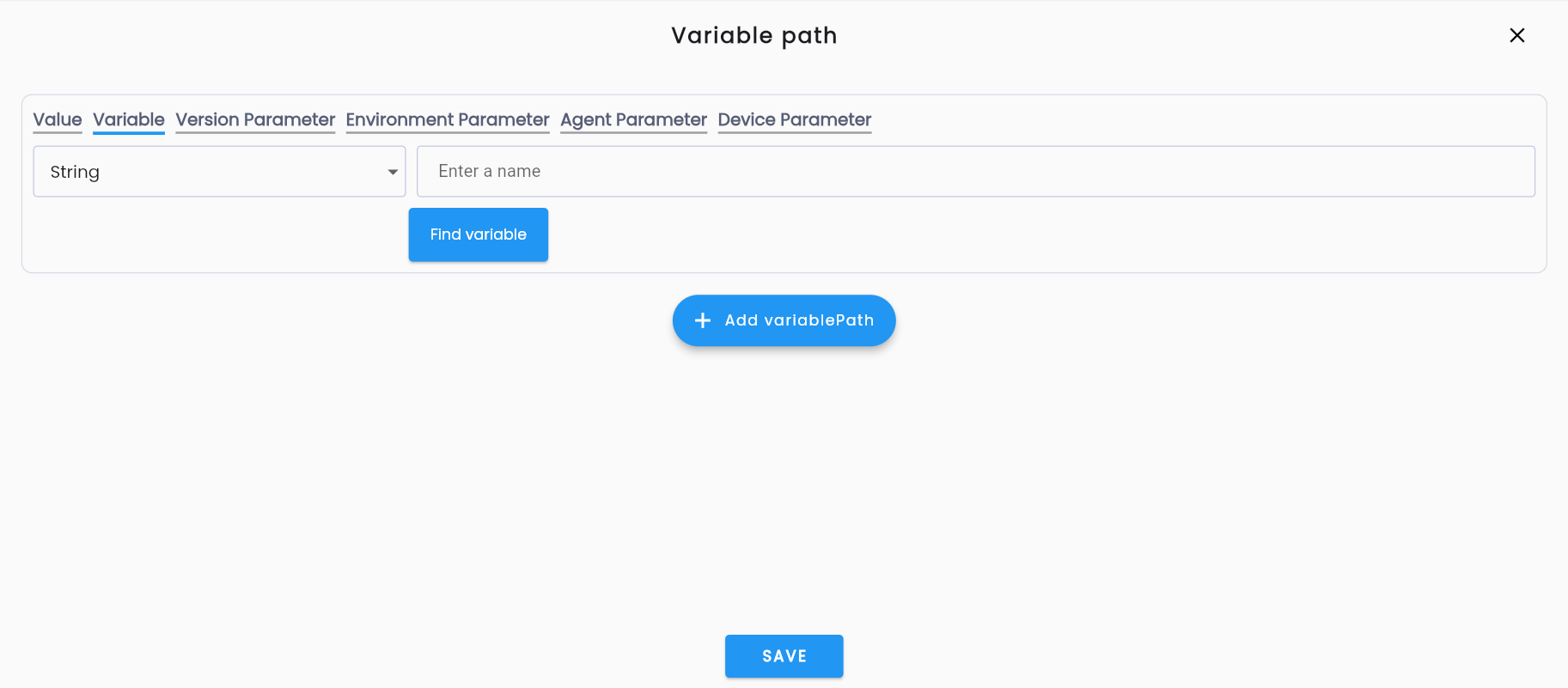

VariablePath Config

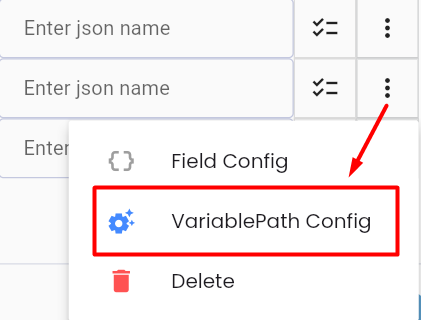

Press the button the select “VariablePath Config”. The system will display the “Variable path” screen.

In there

Field Name	Mandatory	Format	Constraints	Description
Type	Yes			Possible values for Header parameter types
Data type	Yes	Combobox	-	Data type
Name	Yes	Text	Only displayed when the type is different from "Value". Value must start with a letter, must include numbers and cannot use special characters (except "_")	The name of the parameter declared in the project or the name of the variable (Variable)
Value	Yes	Text	Only visible when Type = “Value”	Enter the value directly for the Header parameter
Find Value	-	Button	Only visible when Type = “Value”	Click Find Value, the system will display a list of previously defined values of the project
Find Variable	-	Button	If Type is Variable	Click on Find Variable, the system will display a list of previously defined project parameters

Body request type: Application xml

Similar functions request type is Application json instead of using jsonName, we will use xmlName

Besides

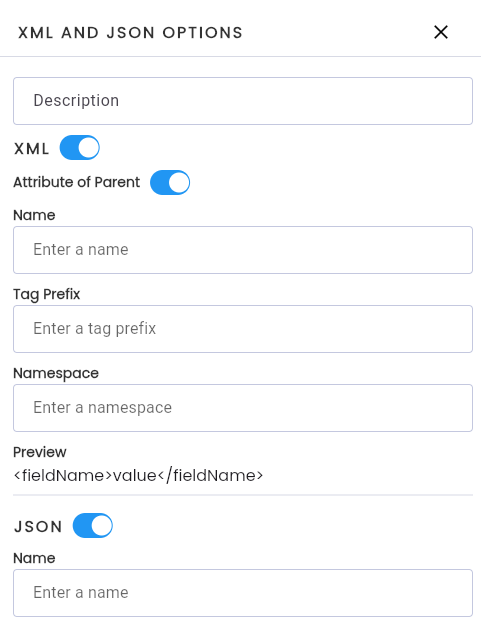

Field Config Function

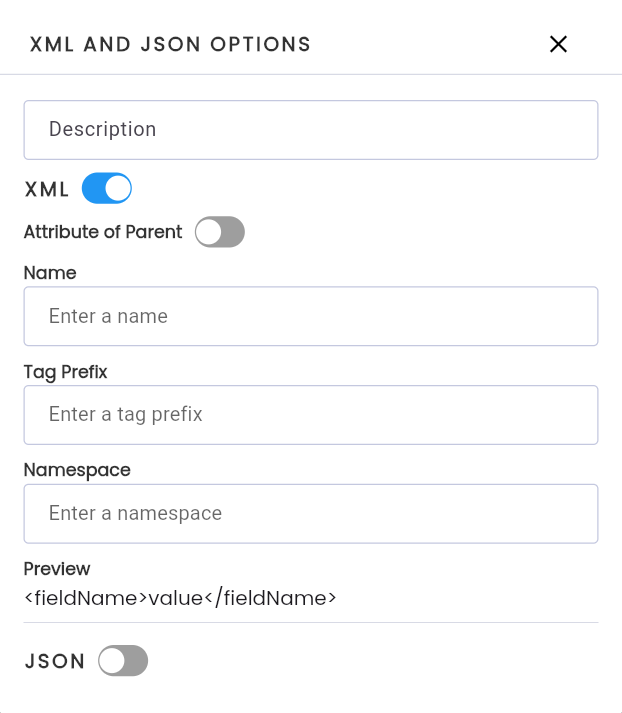

Press button then choose “Field Config”. The system will display the screen “XML AND JSON OPTIONS”.

In there

Field Name	Mandatory	Format	Constaints	Desciption
Description	-	Text	-	Description of the json parameter
	-	Switch Button	-	Is a button to control whether the parameter being declared is used in the api request body or not.
	-	Switch Button
Name	-	Text	-	The name the user gives to the parameter that identifies the element in the XML document.
Tag Prefix	-	Text	-	Tag prefix is used to distinguish XML elements from each other.
Namespace	-	Text	-	Namespace is used to distinguish XML elements from each other.

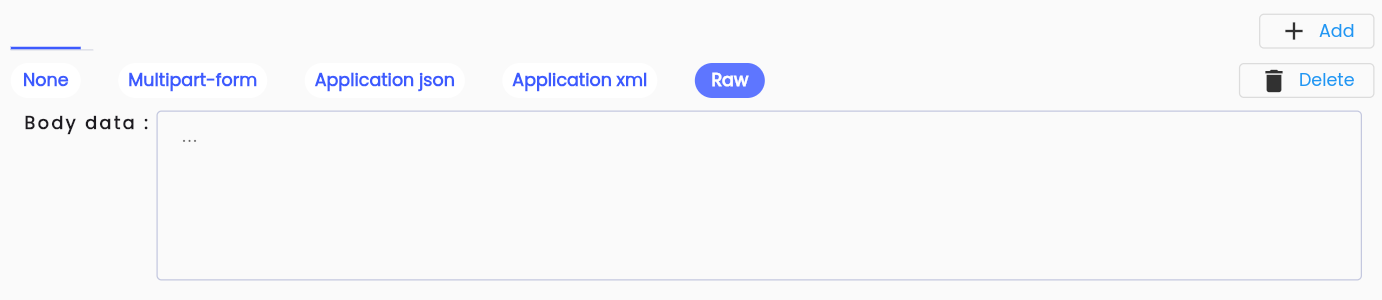

Body request type : Raw

Request Type Raw will determine whether the API Request is used if the API used is of type "json" or "xml" but will not be processed before creating the api request.

In there

Field Name	Mandatory	Format	Constraints	Description
Body data	-	Textarea		Is the body data in the api request

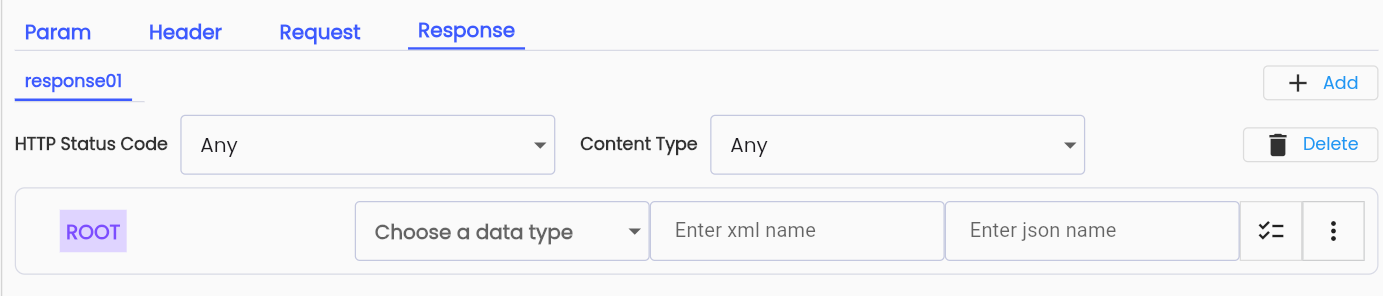

Response API

API response is the API response data after processing an API request.

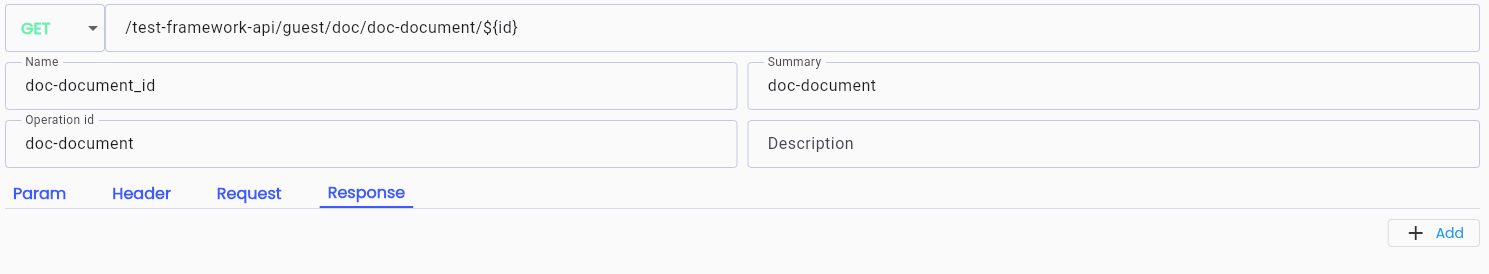

Create Response for API:

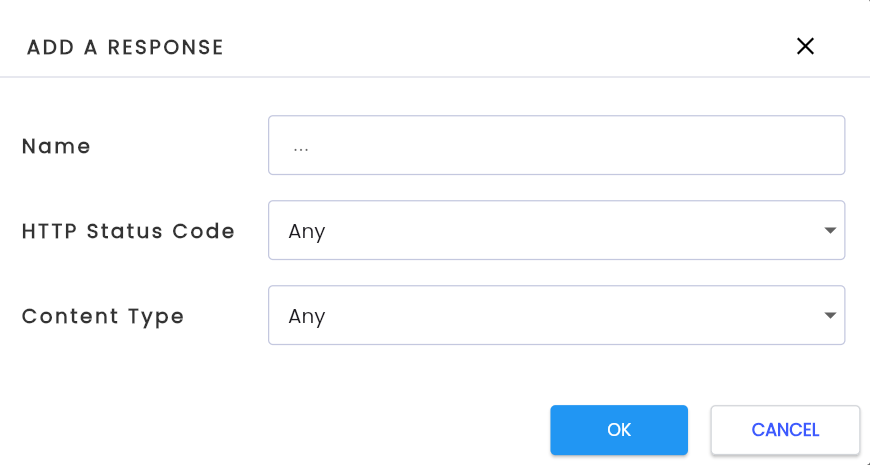

Step 1: On the Response tab, click the "Add" button, the system displays the "Add a response" screen.

Step 2: Completely and validly enter required information fields, including:

Field Name	Mandatory	Format	Constraints	Description
	-	Button		Confirm the creation of a new Api response
	-	Button		Cancel creating a new Api response
Name	Yes	Text		The name of the Api Response stored in the system
HTTP Status Code	Yes	Combobox		Users can select specific http status codes or can select “Any” so the system will automatically identify them.
Content Type	Yes	Combobox		Users can select specific data types or can select "Any" so the system will automatically identify them.
q1` 1
Step 3: Click “OK”
Added successfully, the newly created response information is displayed on the screen.

Content Type includes 4 data types:

• Any
• Application json
• Text xml
• Application xml

The steps to configure the returned data information are similar to configuring a request with request type: Application json and Application xml. Reference to Request API section.

Edit Endpoints

Step 1: At the Low-code screen of the API test, the user selects the Endpoint data line they want to change.

Step 2: Edit the information that needs to be changed and click “Save”

The system displays a notification of successful editing and displays the edited Endpoint in the Endpoints list.

Delete Endpoint

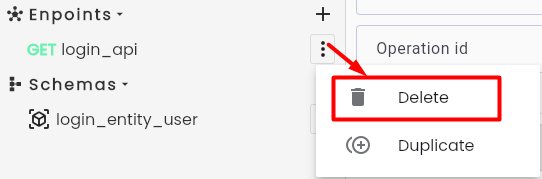

Step 1: At the Low-code screen of the API test, the user clicks the button on the Endpoint data line you want to delete and select Delete.

The system displays a deletion confirmation popup

Step 2: Click “Delete”, notification system Delete successful

Duplicate Endpoint

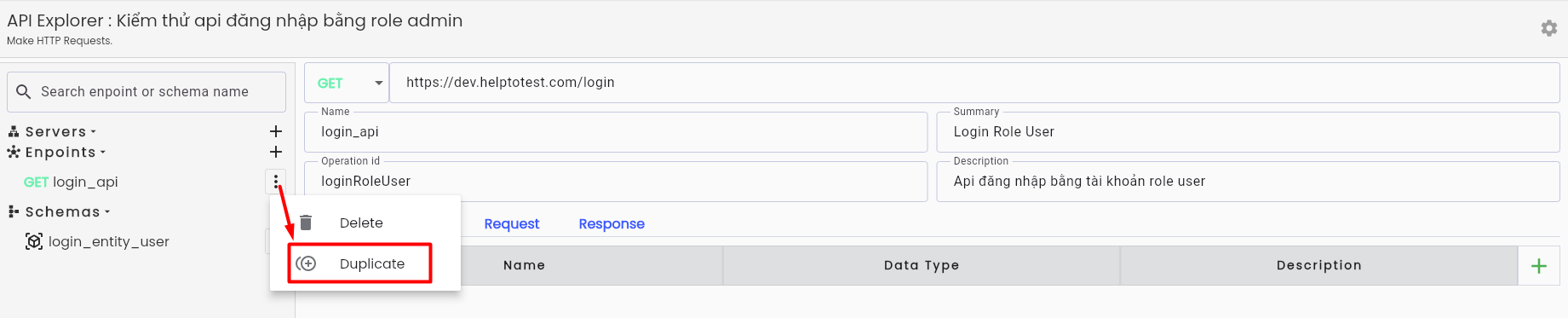

Step 1: At the Low-code screen of the API test, the user clicks the button on the Endpoint data line you want to delete and select Duplicate.

The system displays the Endpoint screen that has been successfully duplicated with full information of Url, Param, Header, Request, Response along with Name = name of the duplicated endpoint + "_copy"

Step 2: Click “Save”, the system notifies Update successful, the Endpoints list is updated to describe the information field whose Endpoint has been successfully Duplicated.

Schemas

Schemas are created to support the management of parameters with data type "Object" in the Endpoints section.

Add new Schemas

Step 1: In the Low-code screen, click “New Schema” or button to create a new endpoint.

Step 2: The system displays the new schema adding screen, the user proceeds to enter the necessary information.

Field Name	Mandatory	Format	Constraints	Description
	-	Button		Click the button to add a data field in a schema
	-	Button		Click on the system button to display the screen “XML AND JSON OPTIONS”.
	Yes	Text		Name of Schema
Name	Yes	Text		The name of the data field in the schema.
Data Type	Yes	ComboBox		Data type of a data field. When creating a new parameter, the system defaults to "String". In addition to normal data types, it is possible to create a Schema data field in a Schema.
Xml	Yes	Text		The name will be used in the request to test the request is application xml.
Json	Yes	Text		The name will be used in the request to test the api if the request is application json.
	-	Checked Button		If button checked image: Determines the data on the parameter in that json becomes a list. For example: If the data Type of the variable is "String", it is selected as a list. The Type data entered for this variable must be a List

Successfully added, the system notifies “Update successful” and displays the declared schema in the Schemas list.

Field Config

Click the button “img” then select “Field Config” the system displays the screen “XML AND JSON OPTIONS”.

In there

Field Name	Mandatory	Format	Constraints	Description
Description	-	Text		Description of the data field

XML Options

Field Name	Mandatory	Format	Constraints	Description
	-	Switch button		Is a button to control whether the parameter being declared is used in the api request body or not.
	-	Switch button
Name	-	Text		The name the user gives to parameter that identifies the element in the XML document.
Tag Prefix	-	Text		Tag prefix is used to distinguish XML elements from each other.
Namespace	-	Text		Namespace is used to distinguish XML elements from each other.

Json Options

Field Name	Mandatory	Format	Constraints	Description
	-	Switch button		Is a button to control whether the parameter being declared is used in the api request body or not.
Name	-	Text		The name will be used in the request to test the api

Edit Schemas

Step 1: At the Low-code screen of the API test, the user selects the Endpoint data line that he wants to change.

Step 2: Edit the information that needs to be changed and click “Save”

The system displays a notification of successful editing and displays the edited Schema in the Schemas list.

Delete Schema

Do the same as Endpoints. Reference to section Endpoints

Duplicate Schema

Do the same as Endpoints. Reference to section Endpoints
